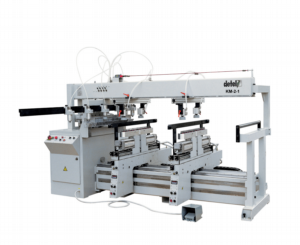

Horizontal-vertical drilling machine KM-2-1
  • The dowel hole-drilling machine KM-2-1 is designed for simultaneous / successive vertical and horizontal drilling of panels and other furniture elements.
  • Standard version of the machine has one horizontal drilling head with 22 spindles and twice two vertical drilling units with 11 spindles and 32 mm axial distance.
  • The turn round of vertical drilling heads is possible in any angle from 0º to 90º.
  • Vertical drilling units with spitted drilling heads.
  • Certain technical characteristics of the machine can be adjusted to meet customer's specification, such as axial distance between spindles, number of spindles, the manner of drill chuck clamping, drilling stroke, engine power etc.

Options:

Special drilling heads with axial distance according to customer’s demands.

Certain technical characteristics of the machine can be adjusted to meet customer's specification, such as axial distance between spindles, number of spindles, the manner of drill chuck clamping, drilling stroke, engine power etc.
